Ruukki Primo Skyline 50

"Ruukki Primo Skyline 50" aluminum composite panels - a cost-optimized, practical design with premium look:

  • Faster, smarter installation
  • Panels individually replaceable
  • Flexible installation: vertical, horizontal or diagonal
  • Designed for practical projects with architectural ambition

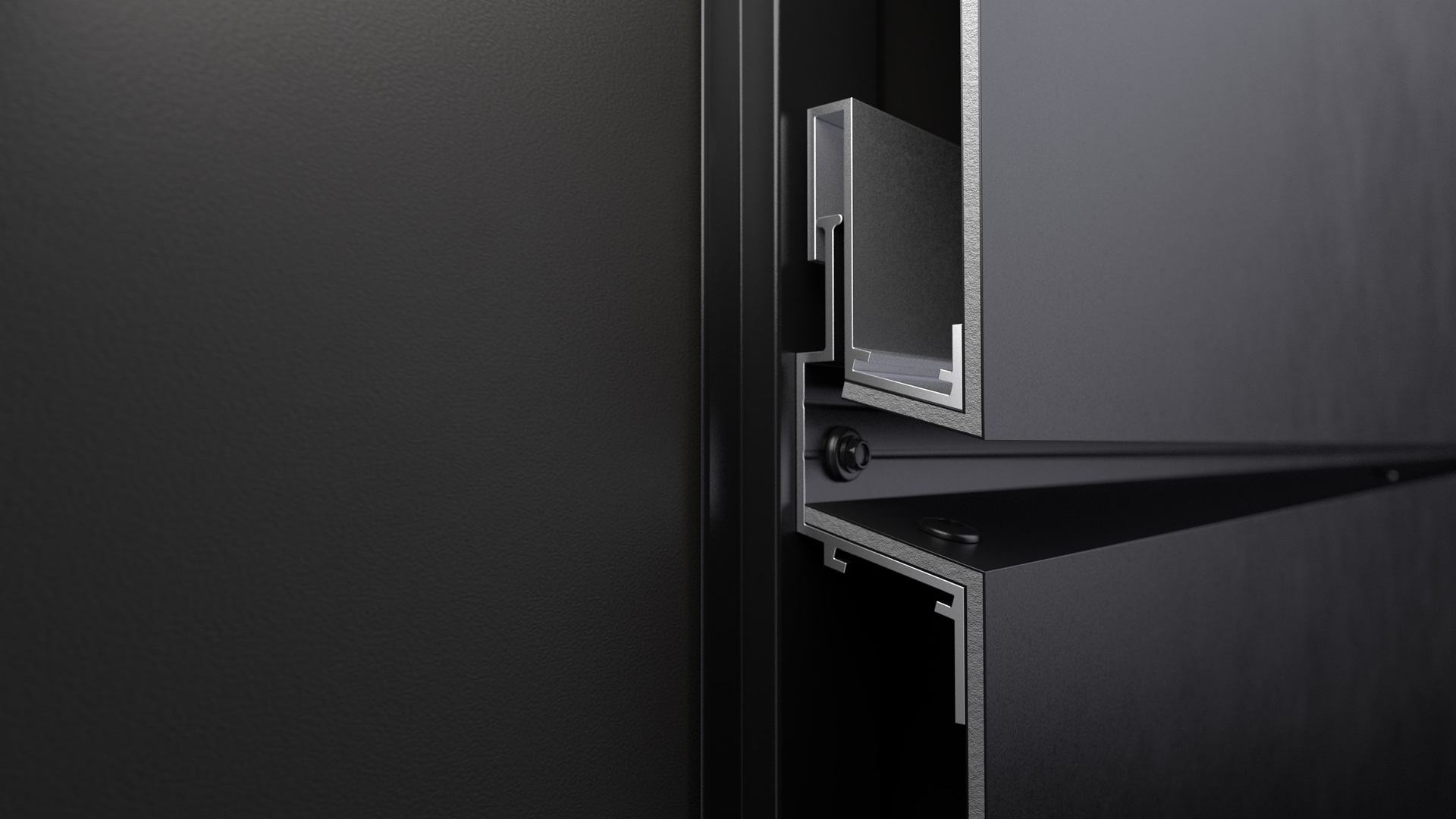

Ruukki Primo panels with tilted joint

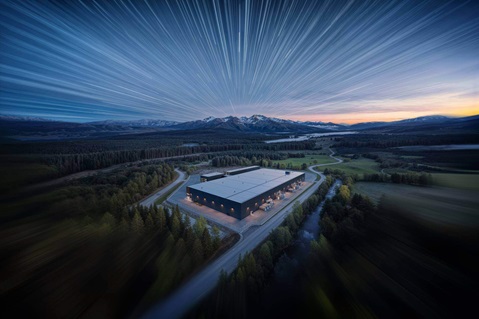

Data center video test

The information on our website is accurate to the best of our knowledge and understanding. Although every effort has been made to ensure accuracy, the company cannot accept any responsibility for any direct or indirect damages resulting from possible errors or incorrect application of the information of this publication. We reserve the right to make changes.

Properties

Model name
Ruukki Primo Skyline 50
Horizontal joint
20...50 mm
Vertical joint
20...50 mm
Width
200...1400 mm
Height
200...5000 mm
Depth
30...50 mm
Fastening Style
Visible

Materials


Material Grade Material thickness (mm) Weight (kg/m2) Surface treatment GWP A1-A3
(kg CO2 equiv./m2)		 Available with perforation Minimum order amount (m2) Reaction to fire
Aluminium composite A2 4.0 9.6 PVDF 33.0 No 750 A2-s1, d0
Aluminium composite FR 4.0 9.0 PVDF 51.1 Yes
Standard colours: 150
Extended colours: 750
 B-s1, d0

Note: Aluminum composite material in grade A2 is not recommended for coastal areas (<1500m from sea)

Coatings and colors



CoatingStandard colours
PVDFMetallic White, Dark Grey Metallic, Traffic Red 3020, Pure White 9010, Copper Metallic, Bronze Metallic, Light Grey 7035, Grey Metallic, Anthracite Grey 7016, Umbra Grey 7022, Silver Metallic, Smoke Metallic, Champagne Metallic, Manganese Metallic, Jet Black 9005, Grey Brown 8019, Purple Red 3004, Signal Yellow 1003, Ultramarine Blue 5002, Pure Orange 2004

For extended colour range & other finishes, please click here.


Gloss level: 30 GU

Primo Umbra Grey 7022

Primo Umbra Grey 7022

Primo Ultramarine Blue 5002

Primo Ultramarine Blue 5002

Primo Traffic Red 3020

Primo Traffic Red 3020

Primo Smoke Metallic

Primo Smoke Metallic

Primo Silver Metallic

Primo Silver Metallic

Primo Signal Yellow 1003

Primo Signal Yellow 1003

Primo Pure White 9010

Primo Pure White 9010

Primo Pure Orange 2004

Primo Pure Orange 2004

Primo Metallic White

Primo Metallic White

Primo Manganese Metallic

Primo Manganese Metallic

Primo Light Grey 7035

Primo Light Grey 7035

Primo Jet Black 9005

Primo Jet Black 9005

Primo Grey Metallic

Primo Grey Metallic

Primo Grey Brown 8019

Primo Grey Brown 8019

Primo Dark Grey Metallic

Primo Dark Grey Metallic

Primo Copper Metallic

Primo Copper Metallic

Primo Champagne Metallic

Primo Champagne Metallic

Primo Bronze Metallic

Primo Bronze Metallic

Primo Purple Red 3004

Primo Purple Red 3004

Primo Anthracite Grey 7016

Primo Anthracite Grey 7016

BIM objects

design-softwares2

Download BIM objects to your desktop

ProdLib brings Ruukki products as BIM models directly to your desktop in 3D form for design programs AutoCAD, Autodesk Revit, Archicad and Tekla Structures. Product libraries compile all necessary design models and detailed drawings in one place. Library updates are automatically notified, so as a user you can be sure that your product information is constantly up to date. ProdLib can also be used as a standalone desktop application.

Go to BIM library

Download documents

Declaration of performance

Order form

Primo order form 1.4.4

xlsm, 1.0 MB

Maintenance instructions

Detail drawings and dimensional drawings

Please fill the form below to get detail drawings and dimensional drawings for Primo Skyline panels,
Why we are collecting and processing personal data?
Please check our Privacy Statement.



References

Visualization tool

Visualize your idea

Get inspired on how our façade cladding products come live in a building façade. Find your own combination of surface structures, patterns, colors and materials.

Go to visualization tool
